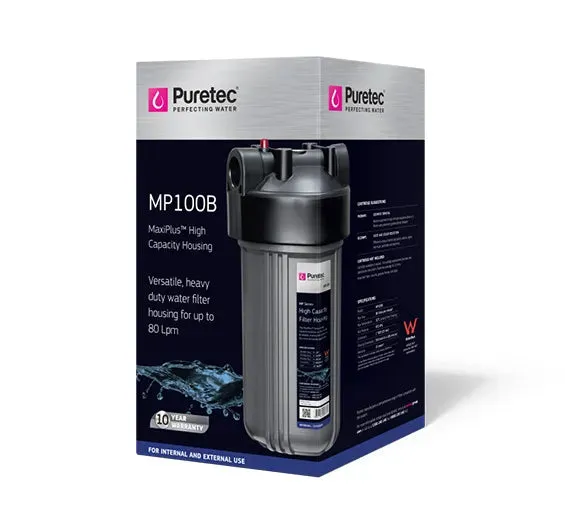

Puretec MP100B MaxiPlus 10" Filter Housing Kit

The Puretec MP100B filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy sediment applications. The extra large housings allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications.

• High capacity filter housings.
• Features double O-ring seals for maximum durability.
• Ribbed design provides robust housing for years of trouble-free service.
• Compact and economical, ideal for duplex systems.
• Wide variety of cartridge replacements available, please note this filter housing does not include a filter upon initial installation.
• Internal and external use to suit different applications.
• UV stabilised.

SPECIFICATIONS

Ordering Code: MP100B
Size: 10''
Min/Max Temperature: 0 - 52°C
Min/Max Pressure: 0 - 875 kPa
Maximum Flow Rate: 80 Lpm
Connection: 1” (25 mm)

10 year warranty is 1 year parts and labour plus 9 years parts only.

Pressure Temperature ratings mean housings must be protected from extremes above and below. This includes freezing, vacuum, overnight pressure creep water hammer.

Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4).
