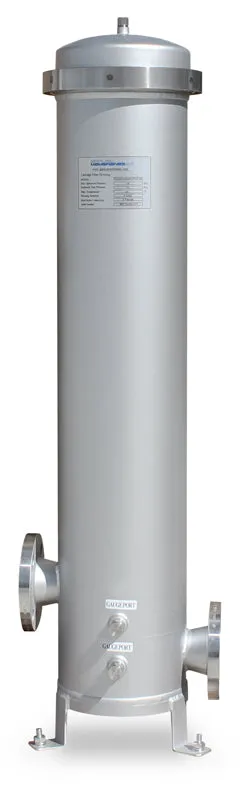

AMI C-0530-2F-304PC commercial filter vessel houses 5 filter cartridge of 30" length and can service flows up to 105 GPM. Constructed of 304 Stainless Steel with a Poly Coat finish, these filters are ideal for use ideal for use in chemical systems, pre-filtration for commercial RO and membrane water treatment systems, high purity water, post- filtration, food & beverage, industrial facilities, and general purpose filtration.
Benefits of AMI Commercial Water Filter Housings
Band V-Clamp Top Closure for Quick and Easy Cartridge Replacement Side-In and Side-Out Connections for Easy Installation and Service Housings are Compatible with Industry-Standard 2.5” OD, 30” Length Filter Cartridges, for Widely Available Replacements Heavy-Duty 304 Stainless Steel Construction for Durability and Reliable Performance AMI Products have earned an industry-wide reputation for their high quality and superior performance
Features of AMI Stainless Steel Liquid Filter Housings
- Band V-Clamp Top Closure
- Built-In Drain and Vent Ports
- 304 Stainless Steel with Poly Coat Finish
- Buna-N O-Ring
|
|
AMI 5-Round 30" Filter Housing Specifications
|
|
| AMI Model Number: |
C-0530-2F-304PC |
| Flow Rate*: |
105 GPM (24 m3/hr) |
| Houses Qty. of Cartridges: |
5 |
| Cartridge Length: |
29¼" or 30" |
| Cartridge Diameter: |
up to 2.5" OD |
| Top Closure: |
Band V-Clamp |
| Inlet/Outlet: |
2" Flange |
| Vent: |
¼" NPT |
| Drain: |
½" NPT |
| Material: |
304SS |
| Finish: |
Poly Coat |
| Max. Operating Pressure: |
150 psi (10 bar) |
| Max. Operating Temperature: |
250°F (120°C) |
Housing Dimensions (approx.):
|
44"H x 12"OD
(1111mm x 305 mm) |
|
|
*Flow rates shown are based on 7 gpm/TIE 25 micron string wound filter cartridge and clean water (viscosity cp = 1) at 2psid. Flow rates are for guide lines only. Actual flow rates will vary based on fluid, viscosity, cartridge type, micron ratings and other factors.
Water Filter Cartridges
|
|
| 1 Micron 30" Sediment Filter: |
|
| 5 Micron 30" Sediment Filter: |
|
| 10 Micron 30" Sediment Filter: |
|
| 20 Micron 30" Sediment Filter: |
|
|
|
AMI Commercial Filter Housings will work with any industry-standard 30" Filter (29 ¼ inch or 300 inch length). Some commonly used filters are suggested above.
|
